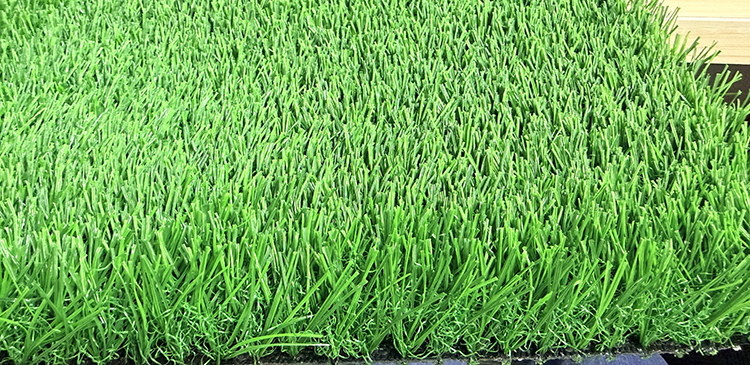

How to Prepare Base for Synthetic Grass Turf?

How to Perfect Base Preparation to Avoid Wasted Effort

When you invest a significant budget in premium synthetic grass turf and hire professional installers, only to find depressions, water pooling, or large-scale deformation three months later—90% of such failures originate from one underestimated step: base preparation. If synthetic grass turf is the building's "facade," then the base is its "structural skeleton." This article provides an in-depth engineering analysis of base preparation, offering an ultimate solution applicable to any ground condition.

Part 1: Why is the Base the "Invisible Soul"?

1.1 The Three Core Missions of the Base

(1) Load-Bearing and Distribution

- Dynamic loads: Impact forces from foot traffic (approx. 1.5 times body weight)

- Static loads: Continuous pressure from furniture or sports equipment

- Environmental loads: Mechanical effects from rainwater penetration and frost heave

- Data shows: Unprepared bases can settle 3-5cm within 6 months, causing visible undulations

(2) Creating a Drainage Lifeline

- Surface water must flow through: Turf permeable layer → Base filter layer → Subsurface drainage system

- Hazards of poor drainage:

  - Standing water breeds mosquitoes (larvae can develop within 48 hours)

  - Frost heave damage in winter

  - Base mold growth from prolonged dampness (in environments >70% humidity)

(3) Establishing a Stable Geometric Plane

- Flatness tolerance: ≤5mm gap under a 3m straightedge

- Slope deviation: ≤0.5% error over any 10㎡ area

- Micro-roughness: Maximum surface particle size ≤10mm

1.2 Four Typical Symptoms of Base Failure

Part 2: Engineering Approaches for Different Substrates

2.1 Native Soil Subgrade – The Most Challenging Systemic Project

Enhanced Construction Process:

Vegetation removal (depth ≥20cm)

    ↓

Soil testing (pH, moisture content, compression coefficient)

    ↓

Layered backfilling (each layer ≤15cm)

    ↓

Vibration compaction (3-5 passes, final pass with water)

    ↓

Geogrid installation (tensile strength ≥30kN/m)

    ↓

Graded aggregate layer (5-8cm, particle size 5-20mm)

    ↓

Secondary compaction (density ≥95%)

    ↓

Leveling course (coarse sand 2-3cm, particle size 0.5-2mm)

Technical Highlights:

- Soil amendments: Add 8-10% quartz sand to clay soil; 5% clay stabilizer to sandy soil

- Root barrier: Install double-layer root barrier within 1.5m radius of trees

- Pest control: Pre-embed diatomaceous earth barrier at 50cm depth

2.2 Concrete/Asphalt Hard Surfaces – Precision is Paramount

Surface Treatment Standards:

Grade A Surface (Ready for direct installation):

- No structural cracks (crack width <0.3mm)

- Surface flatness: ≤3mm gap under 2m straightedge

- Drainage slope: 0.5%-2% with uniform direction

- Cleanliness: Free of oil stains and curing compound residue

Grade B Surface (Requires repair):

- Localized repair protocol:

  Crack treatment (V-grooving + epoxy injection)

      ↓

  Depression filling (self-leveling mortar)

      ↓

  Surface profiling (1-2mm mechanical scouring)

      ↓

  Interface treatment (epoxy primer for adhesion)

Grade C Surface (Requires full renovation):

- Install 3-5cm lightweight concrete leveling course

- Pre-embed PVC drainage network (2×2m grid spacing)

- Install expansion joints (10mm wide every 6m)

2.3 Tile/Stone Surfaces – Special Interface Techniques

Risk Assessment:

- Hollow detection: >15% hollow areas require removal

- Glazed surface treatment: Must be mechanically profiled with diamond grinding

- Joint treatment: All gaps filled with flexible grout

Innovative Solutions:

1. Floating Base System:

   Tile surface cleaning

       ↓

   5mm rubber underlayment installation

       ↓

   Adjustable support pads (40×40cm spacing)

       ↓

   12mm calcium silicate board installation

       ↓

   Screw-fastening system

2. Rapid Renovation System:

   - Laser-leveled 3cm polymer-modified mortar pour

   - Integrated capillary drainage channels (patented technology)

   - Ready for load-bearing within 24 hours

Part 3: Precision Design of Drainage Systems

3.1 Three-Dimensional Drainage Model

Surface drainage (turf infiltration)

    ↓

Intermediate flow layer (quartz sand filtration)

    ↓

Base drainage (aggregate void drainage)

    ↓

Subsurface piping (PVC perforated pipe collection)

    ↓

Terminal treatment (rain garden/catch basin)

3.2 Engineering Methods for Slope Calculation

Standard Slope Formulas:

Minimum slope = 0.5% (5mm drop per meter)

Optimal slope = 1-1.5% (10-15mm drop per meter)

Maximum slope = 3% (30mm drop per meter, requires anti-slip measures)

Complex Terrain Solutions:

- Radial drainage: From center point outward (for circular areas)

- Herringbone drainage: Main channel + branches (for elongated areas)

- Variable gradient design: Different slopes for different zones (multi-functional areas)

Slope Verification Methods:

1. Laser level grid testing (1×1m grid points)

2. Water film test: Observe flow direction and pooling

3. Digital modeling: Simulate drainage paths using Civil 3D software

Part 4: Seven Golden Standards for Quality Control

4.1 Compaction Testing

- Nuclear density gauge: Target ≥95% maximum dry density

- Simple test: No wheel marks after heavy truck passage (≥10-ton load)

4.2 Flatness Acceptance

- Multi-directional testing with 3m aluminum straightedge

- Permissible deviation: ≤5mm (landscape areas), ≤3mm (sports areas)

- Waviness test: No visible undulation from 10m viewing distance

4.3 Drainage Performance Testing

- Simulated rainfall: No pooling at 25L/m²·h intensity

- Permeability rate: ≥10⁻⁵ m/s

- Water retention capacity: ≤3mm (24-hour evaporation equivalent)

4.4 Edge Treatment Standards

- Expansion joints: 20mm flexible gap adjacent to structures

- Perimeter securing: Minimum 3 anchor points per linear meter

- Transition treatment: ≤2mm height difference with adjacent paving

Part 5: Common Critical Errors and Remedial Measures

5.1 Error: Installing Directly on Grass

- Consequence: Weed penetration within 6 months, significant heaving within 1 year

- Remedy: Complete removal and base reconstruction, increasing costs by 300%

5.2 Error: Ignoring Underground Utilities

- Survey requirement: Mandatory utility detection (≥1.5m depth)

- Safety distances: ≥50cm from water pipes, ≥80cm from cables, ≥1.5m from gas lines

5.3 Error: Working in Rainy Conditions

- Permissible conditions:

  - Soil moisture: 8-12% (clay), 5-8% (sandy soil)

  - Air humidity: ≤75%

  - Temperature range: 5°C-35°C

- Post-rain recovery: Clay bases require 3-5 sunny drying days

Part 6: Future Base Technology Outlook

6.1 Intelligent Base Systems

- Moisture-sensing layer: Real-time monitoring of base moisture

- Temperature-regulating layer: Phase-change materials for microclimate control

- Self-healing systems: Microbial mineralization for micro-crack repair

6.2 Ecological Composite Bases

- Integrated rainwater collection-purification-reuse systems

- Subsurface micro-ecosystem development (beneficial microbial communities)

- Carbon-sequestration enhanced materials

Conclusion: The Base as a Temporal Artwork

A well-prepared synthetic grass turf base does not immediately reveal its value upon completion. Its true test comes from:

- The first season's continuous heavy rains

- Three years of seasonal thermal cycles

- A decade of continuous loading

Understanding that beneath every inch of level turf lies a precise multi-layer engineering system explains why professional installations allocate 30%-40% of costs to base preparation. This represents not just technical investment but reverence for time—because a truly good base withstands the scrutiny of years.
